Product Details:
|
| Brand Name:: | THERMO KING | Refrigerant:: | R404a |
|---|---|---|---|
| Compressor:: | Oil-free | Color:: | White |
| Structure:: | Truck Body, Front Mounted Installation | Installation Kits::: | Rubber Hoses, Drain Water Hoses, Wiring Harness Etc |
| Condition:: | New | Box Dimensions ( Lx W X H) (mm):: | X W X H) (mm): 3m-7m |
| High Light: | 1.15kg Thermo King Van Refrigeration Units,6 Cylinder Thermo King Van Refrigeration Units,1.15kg Truck Refrigeration Units |
||
RV, as the acronym of Rapid cooling/Reliable/Revolution Vehicle-powered, is specially designed for transport refrigeration in the range of light
product Introductionn:
| Model RV-200 RV-300 RV-380 RV-580 | ||||||
| Temp. Range | -25℃~+30℃ | |||||
| Refrigerant | R-404A | |||||
| Charge (kg) |
1.10 (TK08 compressor) |
1.15 (TK15 compressor) |
1.2 | 1.8 | 2.5 | |
| Compressor | ||||||
| Model | TK08 | TK15 | TK15 | TK16 | TK16 | |
| Number of Cylinder | 6 | 6 | 6 | 6 | 6 | |
| Displacement (cm3) | 82 | 146 | 146 | 163 | 163 | |
| Cooling Capacity (W) | A.R.I. U.S. Standard @38℃ (Ambient) | |||||
|
Engine Power |
2℃ | 2,000 | 2,200 | 3,300 | 3,800 | 4,900 |
| -18℃ | 800 | 1,150 | 1,740 | 2,200 | 2,520 | |
| Evaporator blower performance | ||||||
| Flow rate (@ 0 static pressure, m3/h) | 700 | 1,500 | 1,500 | 2,500 | ||
| Velocity (m/s) | 3.0 | 3.3 | 3.3 | 3.0 | ||
| Total current consumption on the road (A) | ||||||
| 12 VDC | 30 | 36 | 36 | 44 | ||
| 24 VDC | 15 | 18 | 18 | 22 | ||
| Weight (kg, approximate) | ||||||
| Condenser |
24 (roof-mounted), 23 (nose-mounted) |
24 (roof-mounted), 23 (nose-mounted) |
30 |
35 |
||
| Evaporator | 9 | 15 | 18 | 30 | ||
| Compressor | 4.1 (TK08), 4.3 (TK15) | 4.3 | 4.7 | 4.7 | ||
.RV-200 (Roof & Nose-mounted)
.RV-300 (Roof & Nose-mounted)

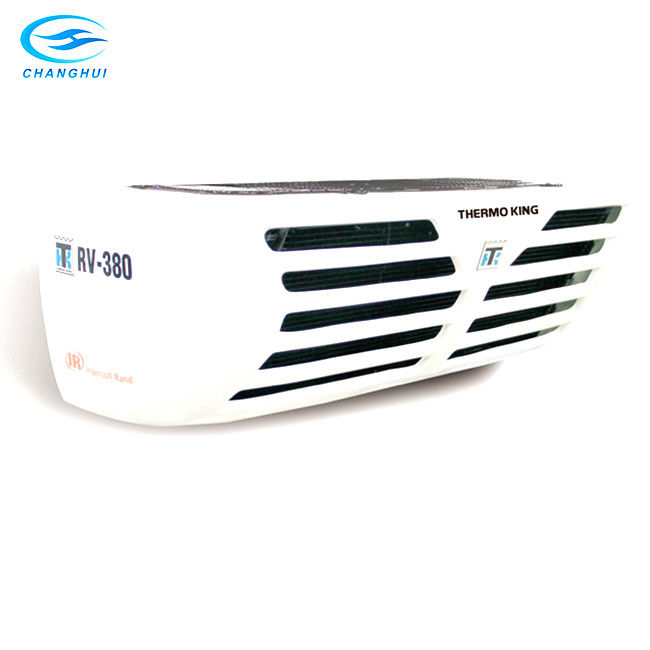

.RV-380
.RV-580
RV-Series Key Features:
Higher Reliability for More Uptime Long-life (20,000 hrs) and one-piece fans TK robust compressor
New electrical control system with high reliability
Easy to Use and Maintenance
Improved electrical system
Less refrigerant charge to care environment Removable relay design for better maintenance
