Product Details:
|

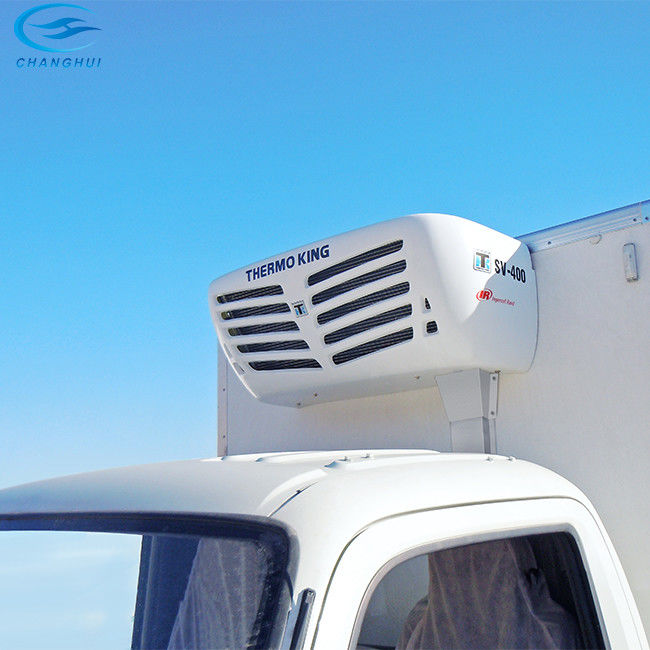

| Model No: | SV400/SV600/SV700/SV800/SV1000 | Product Name: | SV- Series Thermo King Food Truck Refrigerator Freezer Unit For Sale |
|---|---|---|---|
| Refrigerant: | Cold Storage Room Freezer Room | Application: | Cold Storage Room Freezer Room |
| Compressor: | Oil-free | Structure: | Truck Body, Front Mounted Installation |
| Key Words: | Key Words | ||
| High Light: | 3PH Thermo King Van Refrigeration Units,10 Cylinder Thermo King Van Refrigeration Units,3PH Refrigeration Units |
||
.SV-400
.SV-600
.SV-700
.SV-800 . SV-1000
| Temp.Range | -25°C~+30°C | ||||||
| Refrigerant | R-404A | ||||||
| Charge (kg) | 1.8 | 2.5 | 2.5 | 2.6 | 2.6 | ||
| Compressor | |||||||
| Model | TK16 | TK16 | TK21 | TK21 | TK21 | TK31 | |
| Number of Cylinder | 6 | 6 | 10 | 10 | 10 | 10 | |
| Displacement (cm3) | 163 | 163 | 215 | 215 | 215 | 313 | |
| Cooling capacity (W) | A.R.I. U.S. Standard @38°C (Ambient) | ||||||
| Engine power | 2°C | 4,140 | 4,900 | 5,225 | 6,365 | 7,300 | 8,080 |
| -18°C | 2,250 | 2,570 | 2,670 | 3,040 | 4,000 | 4,320 | |
| Electric standby (3phase) | 2°C | 3,500 | 4,350 | 5,490 | 6,200 | 6,200 | |
| -18°C | 1,780 | 2,410 | 2,760 | 3,260 | 3,260 | ||
| Electric standby (1phase) | 2°C | 3,080 | 3,700 | ||||
| -18°C | 1,300 | 1,730 | |||||
| Evaporator blower performance | |||||||
| Flow rate (m3/h) (@0static pressure) | 1500 | 2500 | 2500 | 3000 | 3000 | ||
| Velocity ( m/s) | 3.3 | 3 | 3 | 3.5 | 3.5 | ||
| Electric standby | |||||||
|
Compressor |
semi-hermetic (3phase:151CC;1phase:129CC) |
semi-hermetic (3phase:151CC;1phase:129CC) |
semi-hermetic (206CC) |
semi-hermetic (206CC) |
semi-hermetic (206CC) |
||
|
Voltage/Phase/ Freguency |
380V/3PH/50Hz | 380V/3PH/50Hz |
380V/3PH/50Hz 230V/3PH/60Hz |
380V/3PH/50Hz 230V/3PH/60Hz |
380V/3PH/50Hz 230V/3PH/60Hz |
||
New condenser platform
Light and compact, energy saving
Standard part, share same platform, decrease inventory cost Improved appearance with patented design
(Patent number: 201230487134.2)
