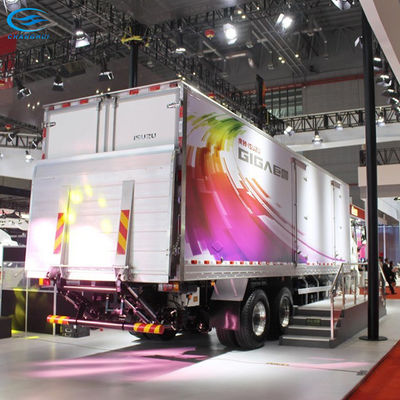

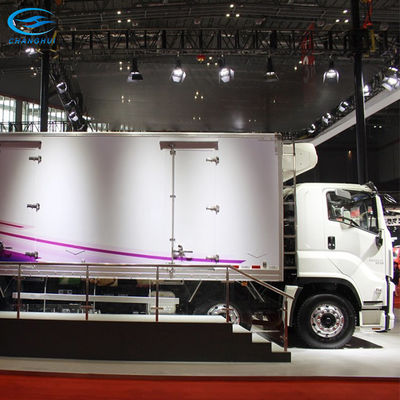

Transport 9600mm 5ton Thermo King Refrigerated Truck

Transport 9600mm 5ton Thermo King Refrigerated Truck
Transport 9600mm 5ton Thermo King Refrigerated Truck Transport 9600mm 5ton Thermo King Refrigerated Truck Transport 9600mm 5ton Thermo King Refrigerated Truck

Large Image :  Transport 9600mm 5ton Thermo King Refrigerated Truck

Product Details:
Place of Origin: China
Brand Name: ISUZU
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD
Packaging Details: standard parking
Delivery Time: 20-35 work day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 Unit

Transport 9600mm 5ton Thermo King Refrigerated Truck

Description
Product Name: Product Name Brand: ISUZU
Color: White Tyre Size: 315/80R22.5 16PR(12R22.5 16PR)
Refrigeration Unit: Thermo King T1000
High Light:

5ton Thermo King Refrigerated Truck

,

9600mm Thermo King Refrigerated Truck

,

5ton Refrigerated Truck

Product Overviews

Isuzu Thermo-King-Truck-Refrigeration-Units



No. Item Unit Specification
1 Vehicle Name   ISUZU 3 to 5ton refrigerator truck
2 Drive type   4*2
3 Steering type   Left hand drive
4 Gross weight kg 4495
5 Curb weight kg 2866
6 Wheelbase mm 3360
7 Overall Dimension mm 5995*1910*2790
8 Van body size mm 4100*1740*1750
9 Insulating layer thickness cm 8
10 Van material   Fiberglass reinforced
11 Refrigerator unit brand   Thermoking or Carrier
12

Refrigeration temperature

range( degree centigrade)

  -18 to 0
13 Chassis Model   QL1040
14 Chassis Brand   ISUZU
15 Engine Model   4KH1CN5HD
16 Displacement / Power ml/kw 2999 / 96KW/ 130HP
17 Emission Standard   Euro 4,5
18 Fuel Type   Diesel
19 Tyre specification   7.00R16 8PR
ENGINE 4HK1-TC50
CYLINDER 4 Max Output 205Ps
Standard National-V Type Diesel
Transmission MLD-6Q
CHASSIS FTR QL5180XXYVTFR1J
Seats 1+1/2Row Tyres 6
Leaf Spring 7/7+7 Tyre 11.00R20, 295/80R22.5
Rear Wheel Distance 1855mm Front Wheel Distance 1960mm
OVERALL
Wheelbase 7200mm Drive 4X2
Overall Size 12000X2550X3900mm Front/Rear suspension 1335/3465mm
Rated Payload 8945KGS Curb Weight 8860KGS
Max Speed 105Km/h
Refrigeration Unit
MODEL T880Pro-50 Brand Thermo King
Compressor X214 Engine TK370

Cooling Capacity

@30oC (Engine Power)

8200W(2oC)

4300W(-20oC)

Cooling Capacity

@30oC(Electric Standby)

5900W(2oC)

3300W(-18oC)

CARTON PARAMETERS
Size 9600x2500x2550mm

product Introductionn:

ISUZU Refrigerated truck:

Refrigerator trucks are enclosed trucks used to transport frozen or fresh goods. Refrigerator trucks are equipped with refrigeration units and refrigeration equipment. Polyurethane insulation trucks are refrigerated transport trucks. Refrigerator trucks can be classified by manufacturers according to chassis carrying capacity and vehicle type.



Refrigerated trucks are often used to transport frozen food (freezer trucks), dairy products (dairy trucks), fruits and vegetables (fresh trucks), vaccine drugs (vaccine carriers), etc.



Refrigerated trucks are also called refrigerated trucks, refrigerated trucks, refrigerated trucks, refrigerated trucks, refrigerated trucks, van refrigerated trucks, seafood refrigerated trucks, ice cream refrigerated trucks, refrigerated container trucks, etc.



.jpg

ISUZU Refrigerated truck Product Model:

  • QL1310ULVDHY
  • QL5310XLCUZVDHJ
  • QL5310XLCU2VDHJ

Thermo King

ABOUT Thermo King Features :
