Product Details:
|
| Model No: | KV-200/KV-300/KV -500 | Product Name: | KV- Series Thermo King Refrigeration Unit For Refrigerated Box Truck |
|---|---|---|---|
| Installation Kits:: | Rubber Hoses, Drain Water Hoses, Wiring Harness Etc | Color: | White |
| Compressor Brand: | THERMO KING | Refrigerant: | R404a |
| Application: | Cold Storage Room Freezer Room | Structure: | Truck Body, Front Mounted Installation |
| High Light: | 1PH Refrigeration Unit For Cargo Van,-18 Celsius Refrigeration Unit For Cargo Van,1PH Van Refrigeration Unit |
||

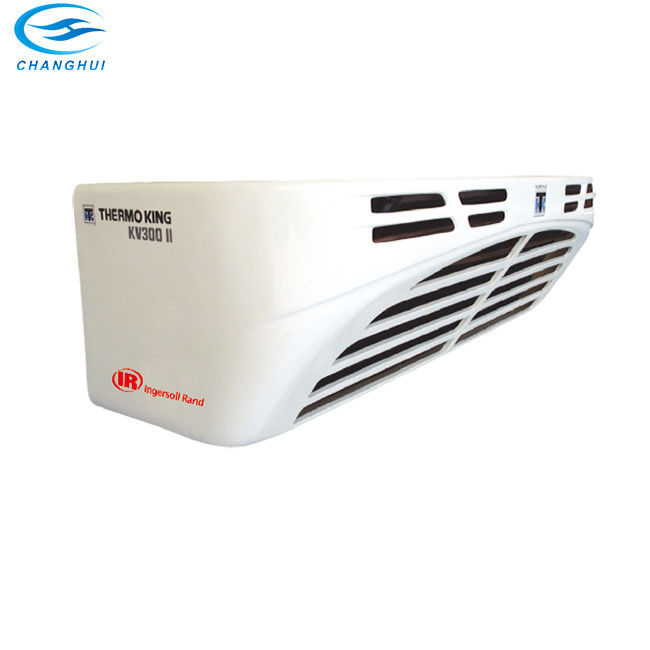

Thermo King’s KV-series is a perfect design vehicle-powered unit with ultra slim micro-channel condenser and evaporator, which delivers the triple benefits of enabling the units to be smaller and lighter, providing high efficiency and more loading space.
The KV-Series range of models is configured to provide superior cooling performance for mini, light and medium refrigerated trucks. The units have undergone intensive testing at our state-of-the-art research and development centers, so it goes without saying that when you deal with Thermo King you are dealing with the Industry benchmark in reliability, performance, durability and efficiency.
| -18℃ | 965 | 965 | ||
| Electric standby | ||||
|
Voltage/phase/frequency/current |
230V/3PH/60Hz/9.5A | 230V/3PH/60Hz/12.6A | 230V/3PH/60Hz/11.2A | |
| 380V/3PH/50Hz/5.7A | 380V/3PH/50Hz/6.7A | 380V/3PH/50Hz/6.5A | ||
| 220V/1PH/50Hz/8.5A | 220V/1PH/50Hz/8.5A | - | ||
| Total current consumption on the road (A) | ||||
| 12 VDC | 36 | 32 | 44 | |
| 24VDC | 18 | 16 | 22 | |
| Weight (approximate) | ||||
| Condenser (kg) | 27(roof mounted) 26(nose mounted) | 30 | 58 | |
| Evaporator (kg) | 15 | 18 (Model B) 22(Model F) | 30 | |
| Compressor (kg) | 4.3 | 4.7 | 4.7 | |
| Electric standby (kg) | 57 | 57 | 44 | |
| Dimension(mm) | ||||
| Condenser | 820(L)*1003(W)*188(H)(roof mounted) 820(L)*500(W)*188(H)(nose mounted) | 1023(L)*435(W)*316(H) | 1150(L)*581(W)*430(H) | |
| Evaporator | 970(L)*595(W)*180(130)(H) |
970(L)*595(W)*180(130)(H) (Model B) 1098(L)*666(W)*149(118)(H) (Model F) |
1376(L)*622(W)*235(H) | |
product Introductionn:
• Ultra slim micro-channel condenser
• Ultra slim evaporator, providing more loading space
• Quick pull down, accurate temperature control and low fuel
consumption
Superior airflow rate to protect goods
• In-cab controls with digital LED display for driver’s convenience
Operation in ambient temperature up to 49℃
• Electric standby option, more energy saving
• Easy maintenance, service and installation
