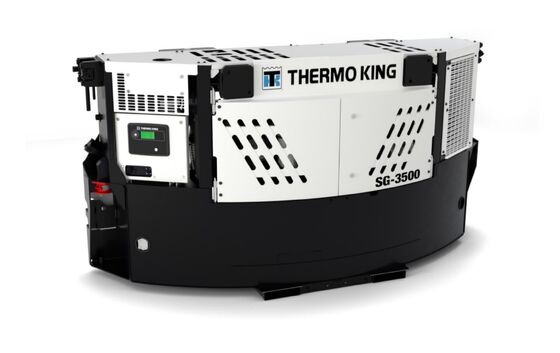

SG-3500 POWER YOU CAN DEPEND ON Thermo King generator sets perform a critical role in international refrigerated transport. Built to be reliable, sturdy, and cost-effective to run, these are technologies that power refrigerated containers – and ensure temperature-sensitive cargoes always arrive in an ideal condition. The SG-3500 occupies a critical position within our market-leading product range. Developed for marine reefers, the unit has been designed with reliability, sustainability, and user experience front of mind.

THERMO KING CORPORATION

1. The generator set is designed for mounting to the upper front structure of an ISO container.

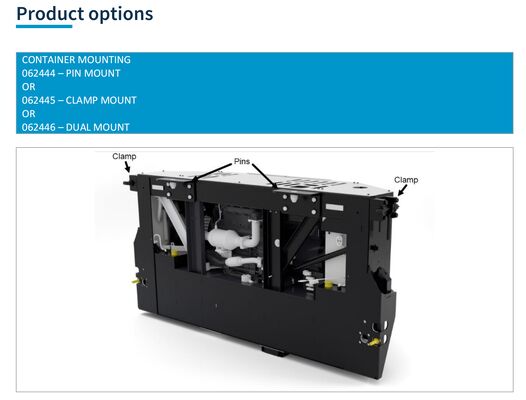

2. The design incorporates a quick connection to the upper container corner castings and/ or steel pin-mounting clamps for mounting to container top.
3. Additional attaching points on the container vertical structural members provide a secure mounting arrangement.
4. These lower mounting bolts are retained by a steel plate, stainless steel hinge, and positive ¼ turn latch.
5. A bolt storage tube is welded to the frame to secure the bolt between trips.
6. The rotor washer clip to prevent spinning off during normal use positively retains the lower mounting bolt/plate washer assembly. Provision tube for mounting bolt when not in use.
7. The Genset envelope considered the need to access the refrigeration unit control box while mounted on all common refrigeration units from Thermo King, Carrier, StarCool, Daikin, Klinge for either standard or high cube containers
8. Genset components (filters, hoses, wire harness, etc.) are installed and securely fastened to ensure dependable, long-term operation and ease of serviceability.
9. All wires, hoses, tubes etc. are fastened properly to protect integrity and prevent wire chafing.
10. Ring terminals or crimps / set screws are used on all high voltage connections.

1. The Genset is designed to withstand & operate satisfactorily in over-the road trucking, and railway operations.
2. The Genset is rated to withstand all shock and vibrations experienced over the life of the Genset.

1. Structural steel frame is cleaned through a 3-stage solvent pretreatment and a 4-stage chemical pretreatment with a multi-metal iron phosphate passivation, and coated with black polyester TGIC powder (2.5 – 4.0) mils.
2. All steel is commercial quality hot or cold rolled.

Salt Spray test

After 1000 hours exposure: using test methods: ASTM B-117 ; ASTM D- 1654 (Proc A, Method 2) ; ASTM D-1735, 7.9 & 7.9.1 (Water Borne); ASTM D-714/ASTM D-610

• Maximum of 3/32" creep total from scribe
• No blisters, and No rust

1. Panels and doors are chemically cleaned through a 3-stage solvent pretreatment and a 4-stage chemical pretreatment with a multi-metal iron phosphate passivation and coated with black polyester TGIC powder (2.5 – 4.0) mils.
2. Door material: aluminum, 0.100" (2.5mm) thick.
3. Panel material: aluminum, 0.063" (1.60 mm) thick.

1. All hardware (screws, washers, nuts & clamps) are stainless steel for maximum protection from salt-water corrosion.
2. This excludes hardware supplied by original equipment manufacturer suppliers.

English and Spanish language operating instructions.

70 dBA. 3-point average at 1m 45 degrees from the exhaust
