3PH Thermo King Van Refrigeration Units

3PH Thermo King Van Refrigeration Units
3PH Thermo King Van Refrigeration Units 3PH Thermo King Van Refrigeration Units 3PH Thermo King Van Refrigeration Units

Large Image :  3PH Thermo King Van Refrigeration Units

Product Details:
Place of Origin: China
Brand Name: CH
Model Number: SV400/SV600/SV700/SV800/SV1000
Payment & Shipping Terms:
Minimum Order Quantity: 2
Price: USD
Packaging Details: standard parking
Delivery Time: 20-35 work day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 Unit

3PH Thermo King Van Refrigeration Units

Description
Model No: SV400/SV600/SV700/SV800/SV1000 Product Name: SV- Series Thermo King Food Truck Refrigerator Freezer Unit For Sale
Refrigerant: Cold Storage Room Freezer Room Application: Cold Storage Room Freezer Room
Compressor: Oil-free Structure: Truck Body, Front Mounted Installation
Key Words: Key Words
High Light:

3PH Thermo King Van Refrigeration Units

,

2.6kg Thermo King Van Refrigeration Units

,

3PH Thermo King Refrigeration Units

3PH Thermo King Van Refrigeration Units



product Introduction:



Temp.Range -25°C~+30°C
Refrigerant R-404A
Charge (kg) 1.8 2.5 2.5 2.6 2.6
Compressor
Model TK16 TK16 TK21 TK21 TK21 TK31
Number of Cylinder 6 6 10 10 10 10
Displacement (cm3) 163 163 215 215 215 313
Cooling Capacity (W)   A.T.P. U.N. Standard @30°C (Ambient)
Engine power 0°C 4,360 5,060 5,500 6,700 7,500 8,500
-20°C 2,350 2,620 2,750 3,200 4,100 4,550
Electric standby (3phase) 0°C 3,800 4,720 5,780 6,570 6,570
-20°C 1,860 2,460 2,900 3,400 3,400
Electric standby (1phase) 0°C 3,300 3,960
-20°C 1,500 1,860
Cooling capacity (W)   A.R.I. U.S. Standard @38°C (Ambient)
Engine power 2°C 4,140 4,900 5,225 6,365 7,300 8,080
-18°C 2,250 2,570 2,670 3,040 4,000 4,320
Electric standby (3phase) 2°C 3,500 4,350 5,490 6,200 6,200
-18°C 1,780 2,410 2,760 3,260 3,260
Electric standby (1phase) 2°C 3,080 3,700
-18°C 1,300 1,730
Evaporator blower performance
Flow rate (m3/h) (@0static pressure) 1500 2500 2500 3000 3000
Velocity ( m/s) 3.3 3 3 3.5 3.5
Electric standby



Compressor

semi-hermetic

(3phase:151CC;1phase:129CC)

semi-hermetic

(3phase:151CC;1phase:129CC)

semi-hermetic

(206CC)

semi-hermetic

(206CC)

semi-hermetic

(206CC)



Voltage/Phase/ Freguency

380V/3PH/50Hz 380V/3PH/50Hz



380V/3PH/50Hz

230V/3PH/60Hz



380V/3PH/50Hz

230V/3PH/60Hz



380V/3PH/50Hz

230V/3PH/60Hz

230V/3PH/60Hz 230V/3PH/60Hz
220V/1PH/50Hz 220V/1PH/50Hz
Total current consumption on the road (A)
12 VDC 40 44
24 VDC 20 22 25 29 29
Weight (kg, approximate)
Condenser 35 (130*) 35 (130*) 50 50 50
Evaporator 18 30 30 31 31
Compressor 4.7 4.7 (TK16), 5.1 (TK21) 5.1 5.1 10.7
Electric standby     109 109 109


SV-Series:

SV, as the acronym of Supreme Vehicle-powered, is designed for refrigerated transportmedium and heavy vehicles. This all new SV platform is equipped with an optimized refcompressor, and many other proven components, to ensure the state-of-the-art quality superior cooling capacity protects perishable cargo, reducing the concern of load loss.
SV-Series Product Model:


.SV-400

.SV-600

.SV-700

.SV-800 . SV-1000



SV-Series Dimension(mm):


3PH Thermo King Van Refrigeration Units

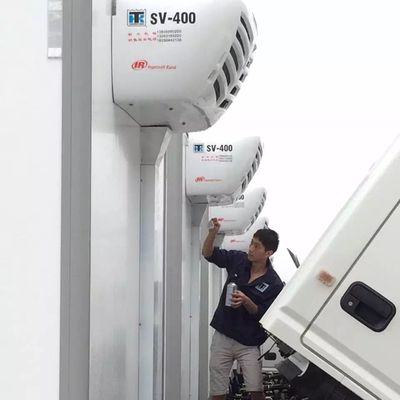

Application scenario









3PH Thermo King Van Refrigeration Units
Packaging & Shipping


Before all finished products are sent out .we will aslo carry out the standard fastness test .After all the tests are qualified ,We will deliver the goods to the Port or location designated by the customer










Contact person :lisa

Wechat: +86 178802809642

Cell phone/whatsApp/skype:+86 17880289642

Ourwebsit : www.cqchui.com

ADD:No. 9, Building 15, International Hardware And Machinery City, No. 2, Lanxin Avenue, Huixing Street, Yubei District, Chongqing, China (Mainland)

IF further question , please contact us without hesitation !
