Product Details:
|
| Model No: | TZ400\TZ600\TZ800\TZ1000\TZ1200 | Product Name: | TZ-Series Thermo King Truck Temperature Controller For Truck Refrigerator Units |
|---|---|---|---|
| Application: | Cold Storage Room Freezer Room | Structure: | Truck Body, Front Mounted Installation |
| Key Words: | Thermo King Truck Refrigeration Units | Compressor Brand: | THERMO KING |
| Color: | White | Installation Kits: | Rubber Hoses, Drain Water Hoses, Wiring Harness Etc |
| High Light: | 250hp Thermo King Van Refrigeration Units,200V Thermo King Van Refrigeration Units,250hp Van Refrigeration Units |
||

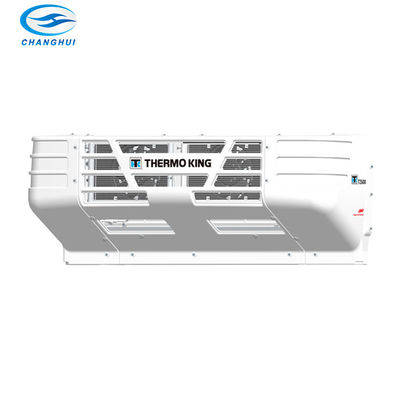

Small Truck Thermo King Van Refrigeration Units
Brand Name:Thermo king
Model:TZ400
Place of Origin:CHINA
Transmission Type:Manual
Condition:New
Horsepower:150 - 250hp
Emission Standard:Euro 4
Fuel Type:Diesel
Box Dimensions (L x W x H) (mm):1632*535*706mm
Temperature Range:-29℃ ~ 29℃
Gross Vehicle Weight:95
Usage:refrigerated truck/van
Refrigeration unit brand:thermo king
Type:vehicle-powered all-in-one refrigeration unit
product Introductionn:
| Temp. range | -25°C～30°C | -25°C～30°C | -25°C～30°C | -25°C～30°C | -25°C～30°C | ||||
|
Refrigerant & Charge(kg) |
R-404A | R-134a | R-404A | R-134a | R-404A | R-134a | R-404A | R-404A | |
| 1.3 | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 3.5 | 1.7×2 | ||
| Cooling capacity (W) | J.I.S. Japan Standard @35°C(Ambient), compressor @ 1,800RPM | ||||||||
|
Engine power |
10°C | 3,720 | 5,170 | 5,800 | |||||
| 0°C | 4,190 | 2,910 | 5,120 | 3,900 | 6,630 | 4,200 | 7,560 | 9,880 | |
| -18°C | 2,330 |
|
2,910 |
|
3,370 |
|
4,300 | 6,160 | |
|
Electric standby (60Hz) |
10°C | 2,420 | 3,100 | 3,480 | |||||
| 0°C | 2,310 | 1,890 | 2,840 | 2,340 | 3,670 | 2,520 | 4,190 | 5,470 | |
| -18°C | 1,280 | 1,610 | 1,870 | 2,380 | 3,410 | ||||
| Cooling capacity (W) | A.T.P. ,U.N. Standard @30°C(Ambient), compressor @ 1,800RPM | ||||||||
|
Engine power |
10°C | 3,930 | 5,450 | 6,120 | |||||
| 0°C | 4,310 | 3,070 | 5,270 | 4,110 | 6,820 | 4,430 | 7,780 | 10,170 | |
| -20°C | 2,400 |
|
2,990 |
|
3,470 |
|
4,430 | 6,340 | |
|
Electric standby (60Hz) |
10°C | 2,550 | 3,270 | 3,670 | |||||
| 0°C | 2,370 | 2,000 | 2,920 | 2,470 | 3,780 | 2,660 | 4,310 | 5,630 | |
| -20°C | 1,320 |
|
1,660 |
|
1,920 |
|
2,450 | 3,510 | |
| Compressor | |||||||||
| Model | TK21 | TK21 | TK21 | TK21 | TK21*2 | ||||
| Displacement(cm3) | 215 | 215 | 215 | 215 | 215 | ||||
| Weight (approximate) | |||||||||
| Without electric standby(kg) | 95 | 120 | 140 | 200 | 220 | ||||
| With electric standby(kg) | 170 | 233 | 253 | 334 | 446 | ||||
| Electric standby | |||||||||
| Voltage/Phase/Frequency/Current | 200V/3PH/60Hz/8.9A | 200V/3PH/60Hz/9.7A | 200V/3PH/60Hz/9.7A | 200V/3PH/60Hz/9.7A | 200V/3PH/60Hz/9.7A | ||||
| Compressor type | Semi-hermetic SF20A | Semi-hermetic SF20B | Semi-hermetic SF20B | Semi-hermetic SF20B | Semi-hermetic SF20B | ||||
| Defrost | |||||||||
| Defrost mode | R-404A:Hot-gas defrost; R-134a: off-cycle defrost | ||||||||
| Note: TZ-1200 units are more reliable for two separate refrigeration system integrated in one unit. | |||||||||
Thermo King’s TZ-series is a unique one-piece condenser & evaporator design which delivers the triple benefits of zero intrusion into the load space to allow highly efficient cargo loading, whilst simplifying installation to the vehicle, and reducing the risk of refrigerant connection leaks compared to the separated major components of traditional systems. small, medium and large refrigerated trucks. The TZ-Series range of models is configured to provide superior cooling performance from lightest in class designs, in a wide variety of Highest quality components are selected throughout, including centrifugal brushless blowers which provide highly efficient circulation of large air volumes with minimal noise, whilst delivering exceptionally long life up to 25,000 hours. Thermo King newly launched “TZ Fresh” Series with R-134a system. TZ Fresh provides superior pull down performance, higher reliability, longer life cycle and lower maintenance cost. It is special for fresh cargos. Count on Thermo King, we always deliver what you matters!
