Thermo King SV-Series SV-400 SV-600 SV-800 SV-1000 Small Van Refrigeration Units Van Chiller Unit Oil Free Compressor

Thermo King SV-Series SV-400 SV-600 SV-800 SV-1000 Small Van Refrigeration Units Van Chiller Unit Oil Free Compressor
Thermo King SV-Series SV-400 SV-600 SV-800 SV-1000 Small Van Refrigeration Units Van Chiller Unit Oil Free Compressor
Thermo King SV-Series SV-400 SV-600 SV-800 SV-1000 Small Van Refrigeration Units Van Chiller Unit Oil Free Compressor Thermo King SV-Series SV-400 SV-600 SV-800 SV-1000 Small Van Refrigeration Units Van Chiller Unit Oil Free Compressor Thermo King SV-Series SV-400 SV-600 SV-800 SV-1000 Small Van Refrigeration Units Van Chiller Unit Oil Free Compressor Thermo King SV-Series SV-400 SV-600 SV-800 SV-1000 Small Van Refrigeration Units Van Chiller Unit Oil Free Compressor Thermo King SV-Series SV-400 SV-600 SV-800 SV-1000 Small Van Refrigeration Units Van Chiller Unit Oil Free Compressor Thermo King SV-Series SV-400 SV-600 SV-800 SV-1000 Small Van Refrigeration Units Van Chiller Unit Oil Free Compressor Thermo King SV-Series SV-400 SV-600 SV-800 SV-1000 Small Van Refrigeration Units Van Chiller Unit Oil Free Compressor Thermo King SV-Series SV-400 SV-600 SV-800 SV-1000 Small Van Refrigeration Units Van Chiller Unit Oil Free Compressor

Large Image :  Thermo King SV-Series SV-400 SV-600 SV-800 SV-1000 Small Van Refrigeration Units Van Chiller Unit Oil Free Compressor

Product Details:
Place of Origin: China
Brand Name: THERMO KING
Model Number: SV400/SV600/SV700/SV800/SV1000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD
Packaging Details: standard parking
Delivery Time: 20-35 work day
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 1000 Unit
Contact Now

Thermo King SV-Series SV-400 SV-600 SV-800 SV-1000 Small Van Refrigeration Units Van Chiller Unit Oil Free Compressor

Description
Model No: SV400/SV600/SV700/SV800/SV1000 Product Name: SV- Series Thermo King Food Truck Refrigerator Freezer Unit For Sale
Refrigerant: Cold Storage Room Freezer Room Application: Cold Storage Room Freezer Room
Compressor: Oil-free Structure: Truck Body, Front Mounted Installation
Key Words: Key Words
Highlight:

3P van chiller unit

,

206CC small van refrigeration units

,

refrigeration units for small vans

Thermo King SV-Series SV-400 SV-600 SV-800 SV-1000 Small Van Refrigeration Units Van Chiller Unit Oil Free Compressor

SV-Series: SV, as the acronym of Supreme Vehicle-powered, is designed for refrigerated transportmedium and heavy vehicles. This all new SV platform is equipped with an optimized refcompressor, and many other proven components, to ensure the state-of-the-art quality superior cooling capacity protects perishable cargo, reducing the concern of load loss.

Product Introduction:
Temp.Range -25°C~+30°C
Refrigerant R-404A
Charge (kg) 1.8 2.5 2.5 2.6 2.6

Compressor Model TK16 TK16 TK21 TK21 TK21 TK31
Number of Cylinder 6 6 10 10 10 10
Displacement (cm3) 163 163 215 215 215 313
Cooling Capacity (W)
A.T.P. U.N. Standard @30°C (Ambient)

Engine power 0°C 4,360 5,060 5,500 6,700 7,500 8,500

-20°C 2,350 2,620 2,750 3,200 4,100 4,550
Electric standby (3phase) 0°C 3,800 4,720 5,780 6,570 6,570

-20°C 1,860 2,460 2,900 3,400 3,400
Electric standby (1phase) 0°C 3,300 3,960



-20°C 1,500 1,860







Electric standby (1phase) 2°C 3,080 3,700



-18°C 1,300 1,730


Evaporator blower performance
Flow rate (m3/h) (@0static pressure) 1500 2500 2500 3000 3000
Velocity ( m/s) 3.3 3 3 3.5 3.5
Electric standby

Compressor

semi-hermetic

(3phase:151CC;1phase:129CC)

semi-hermetic

(3phase:151CC;1phase:129CC)

semi-hermetic

(206CC)

semi-hermetic

(206CC)

semi-hermetic

(206CC)

Voltage/Phase/ Freguency

 380V/3PH/50Hz 380V/3PH/50Hz

380V/3PH/50Hz

230V/3PH/60Hz

380V/3PH/50Hz

230V/3PH/60Hz

380V/3PH/50Hz

230V/3PH/60Hz
SV-Series Key Features:

Thermo King SV-Series SV-400 SV-600 SV-800 SV-1000 Small Van Refrigeration Units Van Chiller Unit Oil Free Compressor 0

Thermo King SV-Series SV-400 SV-600 SV-800 SV-1000 Small Van Refrigeration Units Van Chiller Unit Oil Free Compressor 1

Thermo King SV-Series SV-400 SV-600 SV-800 SV-1000 Small Van Refrigeration Units Van Chiller Unit Oil Free Compressor 2

Thermo King SV-Series SV-400 SV-600 SV-800 SV-1000 Small Van Refrigeration Units Van Chiller Unit Oil Free Compressor 3

Thermo King SV-Series SV-400 SV-600 SV-800 SV-1000 Small Van Refrigeration Units Van Chiller Unit Oil Free Compressor 4

Thermo King SV-Series SV-400 SV-600 SV-800 SV-1000 Small Van Refrigeration Units Van Chiller Unit Oil Free Compressor 5

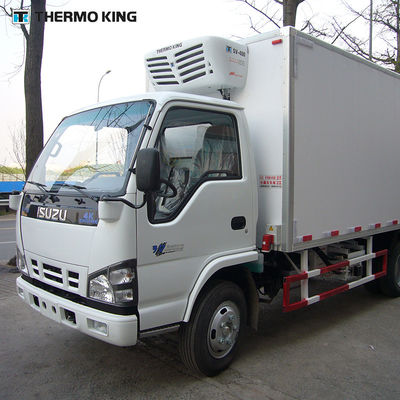

Application scenario

Thermo King SV-Series SV-400 SV-600 SV-800 SV-1000 Small Van Refrigeration Units Van Chiller Unit Oil Free Compressor 6

Payment&delivery

Thermo King SV-Series SV-400 SV-600 SV-800 SV-1000 Small Van Refrigeration Units Van Chiller Unit Oil Free Compressor 7


Contact Us


Thermo King SV-Series SV-400 SV-600 SV-800 SV-1000 Small Van Refrigeration Units Van Chiller Unit Oil Free Compressor 8

Sales manager : Samking Liu
E-mail : chris@cqchui.com
WhatsApp/WeChat : +86 17880280241
Website : www.refrigeration-unit.com
Company name : YANGTZE MOTORS INDUSTRY CO., LIMITED

IF you want to get more information , please contact us without hesitation !
