THERMO KING Ultra Slim KV-Series Van Refrigeration Unit with R404a Refrigerant and Electric Standby

THERMO KING Ultra Slim KV-Series Van Refrigeration Unit with R404a Refrigerant and Electric Standby
THERMO KING Ultra Slim KV-Series Van Refrigeration Unit with R404a Refrigerant and Electric Standby
THERMO KING Ultra Slim KV-Series Van Refrigeration Unit with R404a Refrigerant and Electric Standby THERMO KING Ultra Slim KV-Series Van Refrigeration Unit with R404a Refrigerant and Electric Standby THERMO KING Ultra Slim KV-Series Van Refrigeration Unit with R404a Refrigerant and Electric Standby THERMO KING Ultra Slim KV-Series Van Refrigeration Unit with R404a Refrigerant and Electric Standby THERMO KING Ultra Slim KV-Series Van Refrigeration Unit with R404a Refrigerant and Electric Standby THERMO KING Ultra Slim KV-Series Van Refrigeration Unit with R404a Refrigerant and Electric Standby

Large Image :  THERMO KING Ultra Slim KV-Series Van Refrigeration Unit with R404a Refrigerant and Electric Standby

Product Details:
Place of Origin: China
Brand Name: THERMO KING
Model Number: KV-200/KV-300/KV -500
Payment & Shipping Terms:
Minimum Order Quantity: 2
Price: USD
Packaging Details: standard parking
Delivery Time: 20-35 work day
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 1000 Unit
Contact Now

THERMO KING Ultra Slim KV-Series Van Refrigeration Unit with R404a Refrigerant and Electric Standby

Description
Product Name: KV- Series Thermo King Refrigeration Unit For Refrigerated Box Truck Installation Kits:: Rubber Hoses, Drain Water Hoses, Wiring Harness Etc
Color: White Compressor Brand: THERMO KING
Refrigerant: R404a Application: Cold Storage Room Freezer Room
Structure: Truck Body, Front Mounted Installation Voltage/phase/frequency: 230V/3PH/60Hz, 380V/3PH/50Hz, 220V/1PH/50Hz
Current Consumption: 12 VDC: 36-44A, 24VDC: 18-22A Condenser Weight: 26-58 Kg
Evaporator Weight: 15-30 Kg Compressor Weight: 4.3-4.7 Kg
Highlight:

Thermo King cargo van refrigeration unit

,

Ultra Slim van refrigeration system

,

18C 1PH durable van cooler

THERMO KING Ultra Slim Cargo Van Refrigeration Units 18C 1PH Durability

Thermo King's KV-series is a perfect design vehicle-powered unit with ultra slim micro-channel condenser and evaporator, which delivers the triple benefits of enabling the units to be smaller and lighter, providing high efficiency and more loading space.

The KV-Series range of models is configured to provide superior cooling performance for mini, light and medium refrigerated trucks. The units have undergone intensive testing at our state-of-the-art research and development centers, so it goes without saying that when you deal with Thermo King you are dealing with the Industry benchmark in reliability, performance, durability and efficiency.

Technical Specifications
Specification Model 1 Model 2 Model 3
Temperature -18℃ 965 965
Electric Standby
Voltage/Phase/Frequency/Current 230V/3PH/60Hz/9.5A
380V/3PH/50Hz/5.7A
220V/1PH/50Hz/8.5A		 230V/3PH/60Hz/12.6A
380V/3PH/50Hz/6.7A
220V/1PH/50Hz/8.5A		 230V/3PH/60Hz/11.2A
380V/3PH/50Hz/6.5A
-
Total Current Consumption on the Road (A)
12 VDC 36 32 44
24 VDC 18 16 22
Weight (Approximate)
Condenser (kg) 27 (roof mounted)
26 (nose mounted)		 30 58
Evaporator (kg) 15 18 (Model B)
22 (Model F)		 30
Compressor (kg) 4.3 4.7 4.7
Electric Standby (kg) 57 57 44
Dimension (mm)
Condenser 820(L)*1003(W)*188(H) (roof mounted)
820(L)*500(W)*188(H) (nose mounted)		 1023(L)*435(W)*316(H) 1150(L)*581(W)*430(H)
Evaporator 970(L)*595(W)*180(130)(H) 970(L)*595(W)*180(130)(H) (Model B)
1098(L)*666(W)*149(118)(H) (Model F)		 1376(L)*622(W)*235(H)
Product Introduction

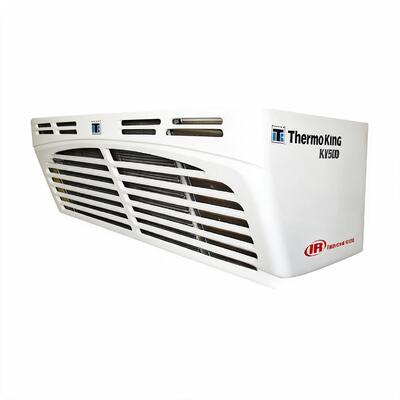

THERMO KING KV-Series Refrigeration Unit
KV-Series Key Features
  • Ultra slim micro-channel condenser
  • Ultra slim evaporator, providing more loading space
  • Quick pull down, accurate temperature control and low fuel consumption
  • Superior airflow rate to protect goods
  • In-cab controls with digital LED display for driver's convenience
  • Operation in ambient temperature up to 49℃
  • Electric standby option, more energy saving
  • Easy maintenance, service and installation
KV-Series Specifications
Application Scene

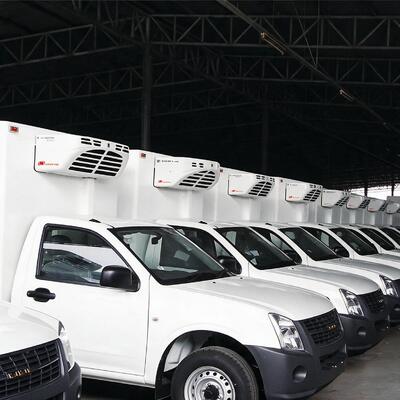

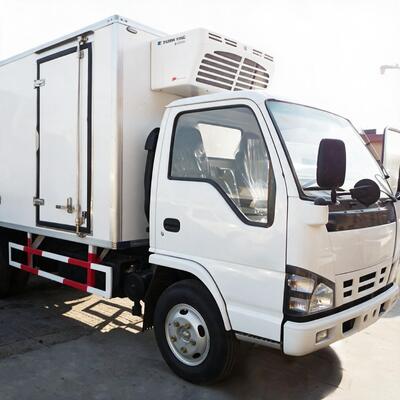

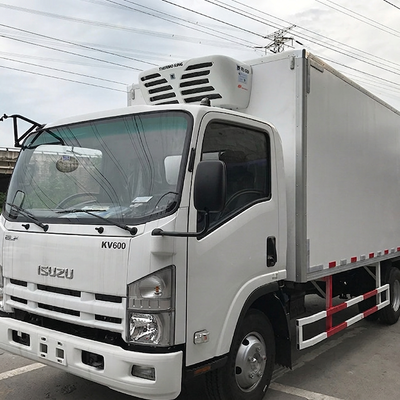

KV-Series Refrigeration Unit Application Scene
