Product Details:
|
| Usage: | Medium Refrigerated Transportation | Optional: | Standby Electric/heating |
|---|---|---|---|
| Color: | White | Brand: | Thermoking |
| Application: | Transport Freezer | Refrigeration Unit: | Thermo King Option |
| Material: | Aluminium Coil | ||
| High Light: | TK Compressor Roof Mounted Refrigeration Unit,Thermo King Roof Mounted Refrigeration Unit,TK Compressor Van Refrigeration Unit |
||

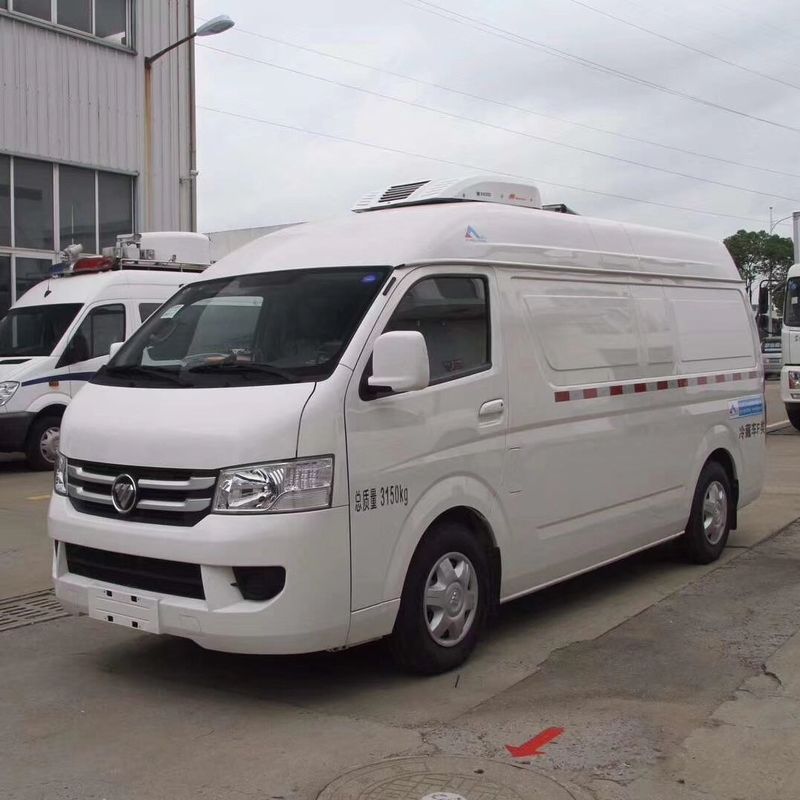

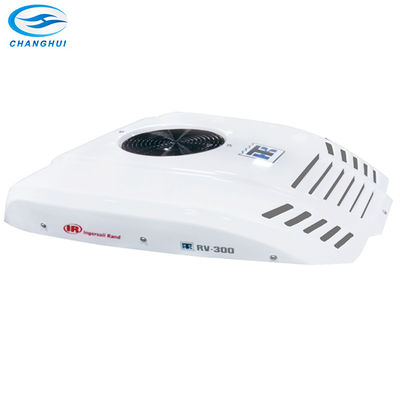

Thermo king Roof Mounted Refrigeration Unit
RV, as the acronym of Rapid cooling/Reliable/Revolution Vehicle-powered, is specially designed for transport refrigeration in the range of light
| Temp.Range | -25°C~+30°C | ||||||
| Refrigerant | R-404A | ||||||
| Charge (kg) | 1.8 | 2.5 | 2.5 | 2.6 | 2.6 | ||
| Compressor | |||||||
| Model | TK16 | TK16 | TK21 | TK21 | TK21 | TK31 | |
| Number of Cylinder | 6 | 6 | 10 | 10 | 10 | 10 | |
| Displacement (cm3) | 163 | 163 | 215 | 215 | 215 | 313 | |
| Cooling Capacity (W) | A.T.P. U.N. Standard @30°C (Ambient) | ||||||
| Engine power | 0°C | 4,360 | 5,060 | 5,500 | 6,700 | 7,500 | 8,500 |
| -20°C | 2,350 | 2,620 | 2,750 | 3,200 | 4,100 | 4,550 | |
| Electric standby (3phase) | 0°C | 3,800 | 4,720 | 5,780 | 6,570 | 6,570 | |
| -20°C | 1,860 | 2,460 | 2,900 | 3,400 | 3,400 | ||
| Electric standby (1phase) | 0°C | 3,300 | 3,960 | ||||
| -20°C | 1,500 | 1,860 | |||||
| Cooling capacity (W) | A.R.I. U.S. Standard @38°C (Ambient) | ||||||
| Engine power | 2°C | 4,140 | 4,900 | 5,225 | 6,365 | 7,300 | 8,080 |
| -18°C | 2,250 | 2,570 | 2,670 | 3,040 | 4,000 | 4,320 | |
| Electric standby (3phase) | 2°C | 3,500 | 4,350 | 5,490 | 6,200 | 6,200 | |
| -18°C | 1,780 | 2,410 | 2,760 | 3,260 | 3,260 | ||
| Electric standby (1phase) | 2°C | 3,080 | 3,700 | ||||
| -18°C | 1,300 | 1,730 | |||||
| Evaporator blower performance | |||||||
| Flow rate (m3/h) (@0static pressure) | 1500 | 2500 | 2500 | 3000 | 3000 | ||
| Velocity ( m/s) | 3.3 | 3 | 3 | 3.5 | 3.5 | ||
Long-life (20,000 hrs) and one-piece fans
TK robust compressor
New electrical control system with high reliability
Improved electrical system
Less refrigerant charge to care environment
Removable relay design for better maintenance
