Product Details:
|
| Usage: | Medium Refrigerated Transportation | Optional: | Standby Electric/heating |
|---|---|---|---|
| Color: | White | Brand: | Thermoking |
| Application: | Transport Freezer | Refrigeration Unit: | Thermo King Option |
| Material: | Aluminium Coil | ||
| High Light: | 608MM Shipping Container Refrigeration Unit,2100W Shipping Container Refrigeration Unit,608MM Container Refrigeration Unit |
||

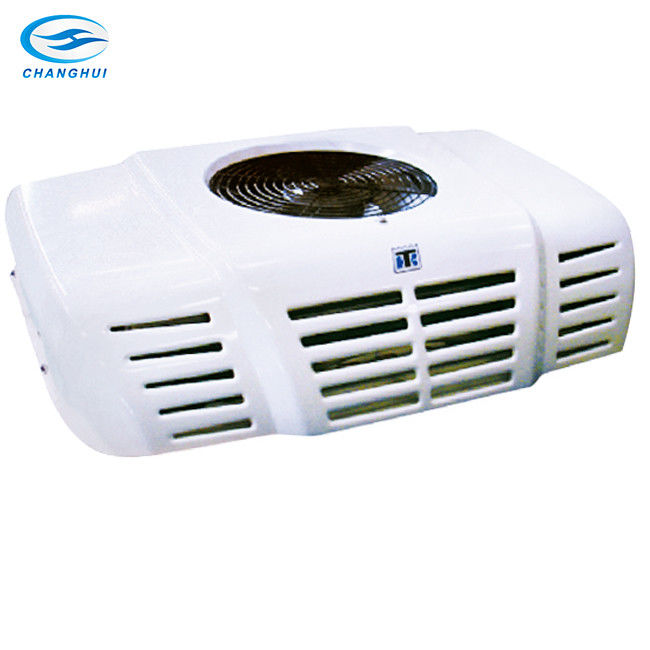

Thermo king Roof Mounted Refrigeration Unit
RV, as the acronym of Rapid cooling/Reliable/Revolution Vehicle-powered, is specially designed for transport refrigeration in the range of light
| Model RV-200 RV-300 RV-380 RV-580 | ||||||
| Temp. Range | -25℃~+30℃ | |||||
| Refrigerant | R-404A | |||||
| Charge (kg) |
1.10 |
1.15 (TK15 compressor) |
1.2 | 1.8 | 2.5 | |
| Compressor | ||||||
| Model | TK08 | TK15 | TK15 | TK16 | TK16 | |
| Number of Cylinder | 6 | 6 | 6 | 6 | 6 | |
| Displacement (cm3) | 82 | 146 | 146 | 163 | 163 | |
| Cooling Capacity (W) A.T.P. U.N. Standard @30℃ (Ambient) | ||||||
|
Engine Power |
0℃ | 2,100 | 2,300 | 3,500 | 4,050 | 5,050 |
| -20℃ | 820 | 1,200 | 1,850 | 2,300 | 2,550 | |
| Cooling Capacity (W) | A.R.I. U.S. Standard @38℃ (Ambient) | |||||
|
Engine Power |
2℃ | 2,000 | 2,200 | 3,300 | 3,800 | 4,900 |
| -18℃ | 800 | 1,150 | 1,740 | 2,200 | 2,520 | |
| Evaporator blower performance | ||||||
| Flow rate (@ 0 static pressure, m3/h) | 700 | 1,500 | 1,500 | 2,500 | ||
| Velocity (m/s) | 3.0 | 3.3 | 3.3 | 3.0 | ||
| Weight (kg, approximate) | ||||||
| Condenser |
24 (roof-mounted), 23 (nose-mounted) |
24 (roof-mounted), 23 (nose-mounted) |
30 |
35 |
||
| Evaporator | 9 | 15 | 18 | 30 | ||
| Compressor | 4.1 (TK08), 4.3 (TK15) | 4.3 | 4.7 | 4.7 | ||
.RV-200 (Roof & Nose-mounted)
.RV-300 (Roof & Nose-mounted)
.RV-380
.RV-580
Thermo King RV200 608MM Shipping Container Refrigeration Unit
